🎚️ LangGraph实战 子图、流响应

子图SubGraph

在面对复杂的workflow时，将不同的功能切分为多个子图，可以显著的提升开发难度

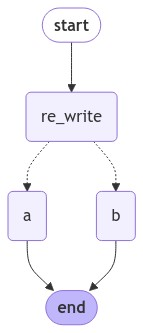

上图示例代码

# Sub graph
class AState(TypedDict):
    standalone_question: str
    answer: str


class AGraph(BaseModel):
    model: BaseChatModel

    async def a_chat(self, state: AState) -> dict:
        """
        A Workflow
        :param state:
        :return:
        """
        question = state["standalone_question"]
        return {"answer": question}

    async def workflow(self, *args: list, **kwargs: dict) -> CompiledGraph:
        workflow = StateGraph(MasterState)

        workflow.add_node("a_chat", self.a_chat)

        workflow.set_entry_point("a_chat")
        workflow.add_edge("a_chat", END)

        return workflow.compile()

# Sub graph
class BState(TypedDict):
    standalone_question: str
    answer: str


class BGraph(BaseModel):
    model: BaseChatModel

    async def b_chat(self, state: AState) -> dict:
        """
        A Workflow
        :param state:
        :return:
        """
        question = state["standalone_question"]
        return {"answer": question}

    async def workflow(self, *args: list, **kwargs: dict) -> CompiledGraph:
        workflow = StateGraph(MasterState)

        workflow.add_node("b_chat", self.b_chat)

        workflow.set_entry_point("b_chat")
        workflow.add_edge("b_chat", END)

        return workflow.compile()

# Master graph
class MasterState(TypedDict):
    question: str
    standalone_question: str
    chat_history: List[AnyMessage]
    answer: str


class MasterGraph(BaseModel):
    model: BaseChatModel

    async def re_write(self, state: MasterState) -> dict:
        """
        问题 重写
        """
        if not state["chat_history"]:
            return {"standalone_question": state["question"]}
        _template = """Given the following conversation and a follow up question, rephrase the follow up question to be a standalone question.

        Chat History:
        {chat_history}
        Follow Up Input: {question}
        Standalone question:
        """
        rewrite_prompt = ChatPromptTemplate.from_template(_template)
        rewrite = rewrite_prompt | self.model
        response = await rewrite.ainvoke(
            {
                "chat_history": state["chat_history"],
                "question": state["question"],
            }
        )
        return {"standalone_question": response.content}

    async def route(self, state: MasterState) -> Literal["a", "b"]:
        """
        模拟问题 路由
        :param state:
        :return:
        """
        question = state["standalone_question"]
        return "a"

    async def workflow(self, *args: list, **kwargs: dict) -> CompiledGraph:
        workflow = StateGraph(MasterState)

        workflow.add_node("re_write", self.re_write)
        workflow.add_node("a", await AGraph(model=self.model).workflow())
        workflow.add_node("b", await BGraph(model=self.model).workflow())

        workflow.set_entry_point("re_write")

        workflow.add_conditional_edges("re_write", self.route, {
            "a": "a",
            "b": "b"
        })

        workflow.add_edge("a", END)
        workflow.add_edge("b", END)

        return workflow.compile()

子图直接继承父图的State，所以子图可以方便的获取和重写父图的State，同时可以有自己的State

使用astream_events流式输出

需要改造的地方有两个

1. 需要流式输出的节点，添加自定义tags使用astream，并拼接answer

   async def generate(self, state: State) -> dict:
       rag_chain = rag_prompt | self.model.with_config({"tags": ["answer"]})
       context = "\n".join([doc.page_content for doc in state["docs"]])
       answers = []
       async for chunk in rag_chain.astream({"context": context, "question": state["standalone_question"]}):
           answers.append(chunk.content)
       return {"answer": "".join(answers)}


2. 最终调用的方式，使用astream_events，过滤返回的event中的tags属性，以上面的节点为例

   agent = MasterGraph(model=TaliLLM())
   async for event in agent.workflow().astream_events({"question": message, "chat_history": history}, version="v1"):
       kind = event["event"]
       if kind == "on_chat_model_stream" and "answer" in event["tags"]:
           answer += event["data"]["chunk"].content
           print(answer)
